What’s the Difference?

Construction staking and layout surveys are not the same thing. Builders mix them up constantly, and it costs time and money.

A layout survey (also called a site plan survey or improvement location survey) is done before construction begins. It checks where everything sits on the lot relative to property lines, setbacks and existing improvements. It answers the question: “Can we build here, and where exactly?”

Construction staking happens after the layout survey. It physically marks where the new structure, utilities and site features go on the ground. It answers the question: “Where do the crews start digging?”

Both are done by a licensed land surveyor. Both are required on most commercial and residential projects. Neither replaces the other.

Why Developers Confuse the Two

The confusion is understandable. Both involve a surveyor walking your site with equipment and driving stakes in the ground.

The key difference is timing and purpose.

A layout survey documents existing conditions and verifies you’re within code and legal limits before a shovel moves. Construction staking translates your approved plans into physical marks on the ground so crews know exactly where to build.

Skip the layout survey and you risk building over setbacks or utility easements. Skip the staking and your crew is guessing.

What a Layout Survey Covers

A layout survey (sometimes called a site improvement survey or pre-construction survey) typically includes:

• Location of all existing structures on the lot
• Property lines and lot dimensions verified against the deed
• Setback lines per local zoning
• Utility easements and right-of-way boundaries
• Existing grades and drainage patterns in some cases

This survey produces a map. That map goes to the engineer, architect and local permit office. Without it, you can’t finalize a site plan or pull most commercial permits.

On infill lots and tight urban parcels, the layout survey is especially important. Old recorded plats don’t always match what’s on the ground.

What Construction Staking Covers

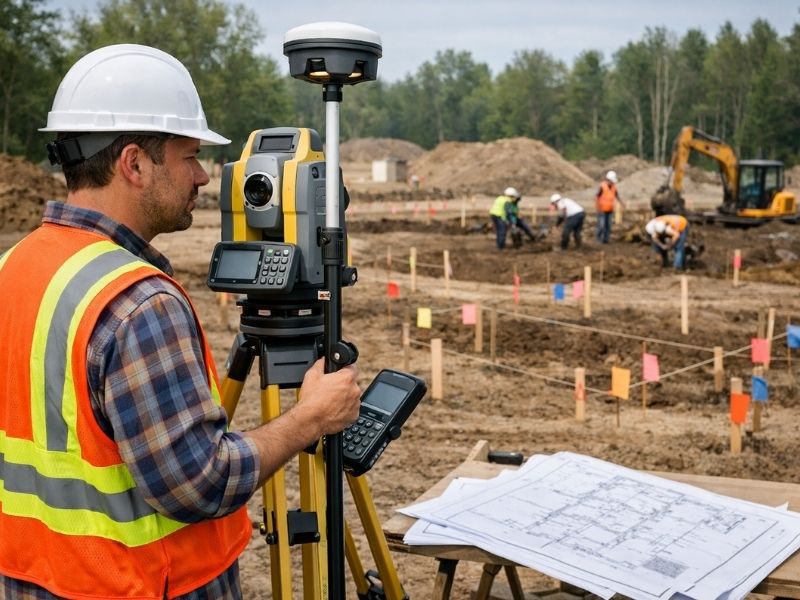

Once permits are approved and plans are finalized, construction staking begins. The surveyor takes the approved site plan and puts physical control points, hubs and stakes on the ground.

Common staking types include:

Building corner staking. Stakes are set at the corners of the proposed structure, offset a set distance from the actual foundation lines so they don’t get disturbed during excavation.

Foundation layout. For complex footprints, the surveyor marks all corners of the foundation including re-entrant corners, stepped footings and column centerlines.

Rough grade stakes. These give the grading crew cut and fill information so they hit the correct finished grades before concrete work starts.

Utility staking. Marks the centerlines and invert elevations for sewer, water, storm drainage and other underground lines.

Curb and paving layout. For site development work, the surveyor marks centerlines and edge-of-pavement for parking lots, drives and curbs.

Each phase of construction may need a separate staking visit. Foundation staking, rough grade staking and utility staking are often three separate site visits.

When Do You Need Each One?

Here’s a simple way to think about the sequence on a typical commercial development:

1. Layout survey at due diligence or site plan design
2. Submit site plan and pull permits
3. Construction staking before excavation begins
4. Additional staking visits as each phase starts (utilities, paving, etc.)
5. As-built survey after construction for occupancy and closeout

Missing step one or three will stall your project. Local building departments and inspectors check for both.

How Staking Errors Happen (And What They Cost)

The most common staking-related problems on job sites:

• Stakes get knocked out by equipment and nobody tells the surveyor
• Crews interpret offset stakes as the actual building line and dig wrong
• The approved plan changes after staking but the stakes don’t get updated
• Inadequate control benchmarks cause elevation errors in the slab

A shifted foundation that requires partial demolition can cost tens of thousands of dollars. A slab poured at the wrong elevation costs even more to fix.

The fix is communication. Tell the surveyor when stakes are disturbed. Don’t let crews interpolate between missing stakes. If the plan changes, call for a restaking visit.

What to Give Your Surveyor Before Staking Starts

To get accurate staking done on schedule, give your surveyor:

• A final, signed and approved site plan (PDF and CAD file if possible)
• Any recent as-built drawings or previous surveys on the site
• The approved grading plan with finished floor elevation noted
• The utility plan with invert elevations
• Your construction schedule so staking visits match crew sequencing

The more complete the package, the faster the staking gets done. Surveyors who have to hunt for the finished floor elevation or interpret unclear plan sheets make mistakes.

Frequently Asked Questions

Do I need a layout survey if I already have a recent boundary survey?

A boundary survey shows property lines. A layout survey shows property lines plus existing improvements, setbacks and easements in relation to your proposed construction. They’re different products. Most permit offices require the layout survey specifically.

Who pays for construction staking, the owner or the contractor?

It varies by contract. On most commercial projects, staking is the owner’s or developer’s responsibility and gets contracted directly with the surveyor. On some design-build contracts, the GC includes it. Clarify this in the contract before work starts.

How far in advance should staking be scheduled?

Two to three weeks minimum. Surveyors need the final approved plan set, not a draft. Rushed staking with incomplete plans is one of the most common causes of staking errors.

Can a contractor use GPS to stake the building instead of hiring a surveyor?

A contractor’s GPS unit is not a substitute for a licensed land surveyor’s staking. Most local jurisdictions require a licensed surveyor to perform and certify construction staking. Using uncertified GPS marks can void your permit and create liability if the structure is built in the wrong location.

What happens if construction stakes are disturbed or missing?

Stop work and call the surveyor. Do not let crews estimate or interpolate missing stakes. A restaking visit is far cheaper than a misaligned foundation.
